Installing the KIE Server

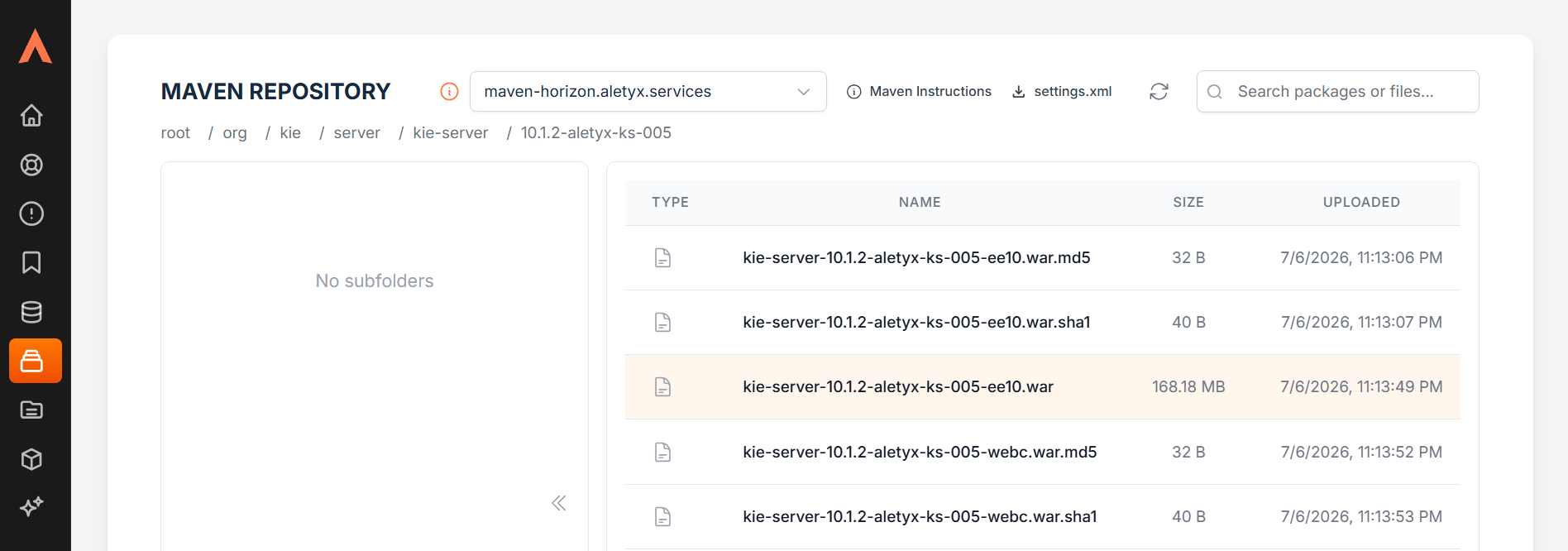

• webc - WAR for ordinary Web containers (Servlet)
• ee10 - WAR for Jakarta EE containers like JBoss EAP or WildFly

1. Deploy the WAR file into your web container.
2. Create a user with the role of kie-server on the container. Check the section below for the guidelines for your container.
3. Test that you can access KIE Server by navigating to the endpoint in a browser window: http://SERVER:PORT/CONTEXT/services/rest/server/.
4. When prompted for user name/password, type in the user name and password that you created.

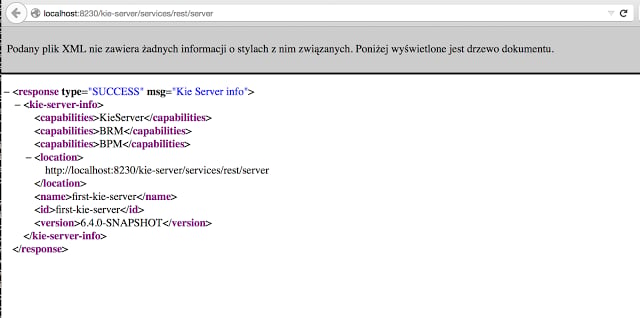

5. Once authenticated, you will see an XML response in the form of KIE Server status, similar to this:
   Sample handshaking server response

   <response type="SUCCESS" msg="KIE Server info">
     <kie-server-info>
       <version>7.67.2-SNAPSHOT</version>
     </kie-server-info>
   </response>


​

Installation details for different containers

​

Tomcat

1. Download and unzip the Tomcat distribution. Let’s call the root of the distribution TOMCAT_HOME.
2. Download kie-server-…-webc.war and place it into TOMCAT_HOME/webapps.
3. Configure user(s) and role(s). Make sure that the file TOMCAT_HOME/conf/tomcat-users.xml contains the following user name and role definition. You can choose a different user name and password, just make sure that the user has the role kie-server:
   User name and role definition for Tomcat

   <role rolename="kie-server"/>
   <user username="serveruser" password="my.s3cr3t.pass" roles="kie-server"/>

4. Start the server by running TOMCAT_HOME/bin/startup.[sh|bat]. You can check out the Tomcat logs in TOMCAT_HOME/logs to see if the application deployed successfully. See the KIE Server system properties table for the bootstrap switches that can be used to properly configure the instance. For instance:
   ./startup.sh -Dorg.kie.server.id=first-kie-server
                -Dorg.kie.server.location=http://localhost:8080/kie-server/services/rest/server

5. Verify the server is running. Go to http://SERVER:PORT/CONTEXT/services/rest/server/ and type the specified user name and password. You should see a simple XML message with basic information about the server.

​

WildFly

1. Download and unzip the WildFly distribution. Let’s call the root of the distribution WILDFLY_HOME.
2. Download kie-server-…-ee.war and place it into WILDFLY_HOME/standalone/deployments.
3. Configure users and roles by executing the following command:
   $ ./bin/jboss-cli.sh --commands="embed-server --std-out=echo,/subsystem=elytron/filesystem-realm=ApplicationRealm:add-identity(identity='kieserver'),/subsystem=elytron/filesystem-realm=ApplicationRealm:set-password(identity='kieserver', clear={password='kieserver1!'}),/subsystem=elytron/filesystem-realm=ApplicationRealm:add-identity-attribute(identity='kieserver', name=role, value=['kie-server'])"

   You can choose a different user name and password, just make sure that the user has the role kie-server.
4. Start the server by running WILDFLY_HOME/bin/standalone.[sh|bat] -c standalone-full.xml <bootstrap_switches>. You can check out the standard output or WildFly logs in WILDFLY_HOME/standalone/logs to see if the application deployed successfully. See the KIE Server system properties table for the bootstrap switches that can be used to properly configure the instance. For instance:
   ./standalone.sh  --server-config=standalone-full.xml
                    -Djboss.socket.binding.port-offset=150
                    -Dorg.kie.server.id=first-kie-server
                    -Dorg.kie.server.location=http://localhost:8230/kie-server/services/rest/server

5. Verify the server is running. Go to http://SERVER:PORT/CONTEXT/services/rest/server/ and type the specified user name and password. You should see a simple XML message with basic information about the server.
